|Accuracy Level:||0.5||Displayer:||LED Digital Display|
|Capacity:||2000 KG||Max Stroke:||1200 Mm|
|Test Speed:||0.01~500 Mm/min||Dimension:||80×50×150 CM|
|Effective Test Width:||400mm||Speed Accuracy:||Less Than ±0.5%|
tensile strength testing machine,
tensile testing equipment

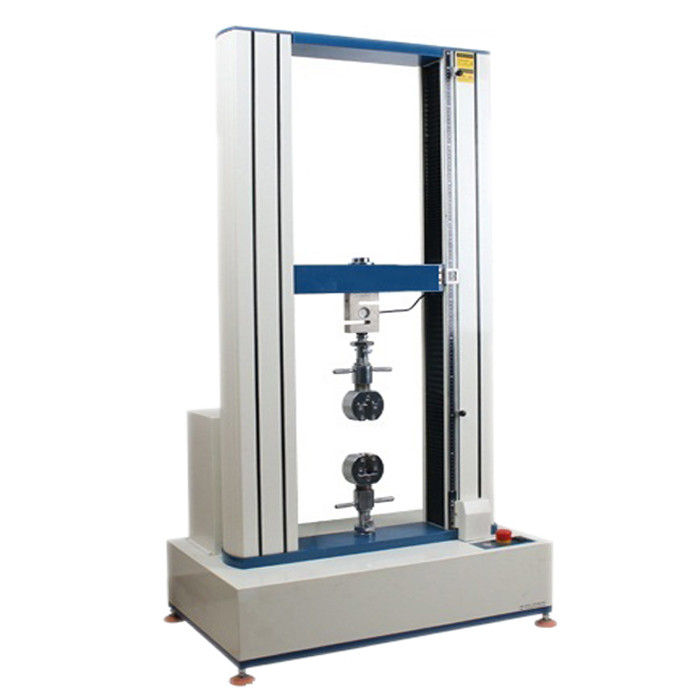

Computer Control Tensile Tearing Strength Testing Machine LED Digital Display
Cheap Tensile Testing Machine is widely used in all kinds of materials like shoes sole, tyre, rubber tubing, bead apex, plastic cloth, plastic plate, metal, package film, acrylic, FRP, ABS, EVA, PV,etc. Finished , halt finished or dumbbell shape samples tensile strength, elongation, tearing, adhesive force, stress, peel strength, shearing force,etc. by using different grips.
|Effective Force Range||0.02%~100%|
|Effective pull space||1200mm(contain grips)|
|Effective test width||400mm||320mm|
|Effective test force range||0.02/100~100%|
|Speed accuracy||Less than ±0.5%|
|Displacement accuracy||Less than ±1%|
|Deformation test accuracy||Less than ±1%|
Panasonic servo motor MDMA082P1G
Panasonic servo drive MDDDT3530053
|AC servo motor + AC drive|
|Software controlling system||Fully computer control, can do constant stress, constant strain, constant displacement,ect. test|
|Lifting control||Computer control or manual button control|
|Grips||Customize according to customer requirements|
|Optional parts||Lenovo computer|
|Collection of induction||Taiwan High-precision Sensor|
|Weight:||About 145 kg|
|Operation method||computer control|
|Stroke limits protection||Machinery, computer double protection, prevent over preset|
|Emergency stop device||Handling emergencies|
|Overload limits Protection||Can setup maximum load value, automatic protection|
l All aluminum mold processing without any solder joints, high-grade smooth paint processing, durable
l Japan Seiko T-ball screw + light pole linear bearings
l Japan Omron photoelectric encoder
l Variable frequency motor + variable frequency drive
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 380V, insurance indicator.
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Contact Person:Victoria Li
