产品详情:
|
Temperature Range: | 室温至200℃ | 温度波动在死: | ≤±0.1°C |
---|---|---|---|
相关标准: | GB/T1232,GB/T 1233,ISO667,ISO 289,ASTM D 1646,JIS K 6300等 | Temperature Resolution: | 0.1°C |
控制模式: | 所有计算机控制 | 软件语言: | English |
扭矩的测量范围: | 0-200mv | 扭矩分辨率: | 0.1mv |
用途: | Mooney粘度和放松测试仪 | ||
High Light: | viscosity tester equipment,,,,磨损测试机 |

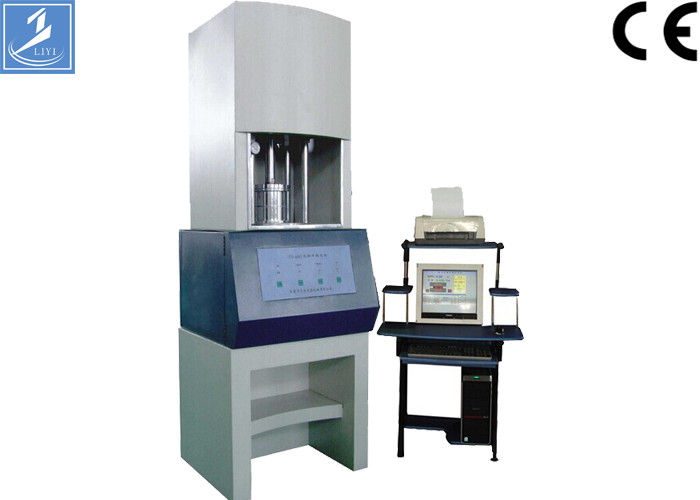

Laboratory Mooney Viscometer Rubber Testing Equipment High Precise
应用:
High Precision Labrotary Mooney Viscometer is used for testing reclaimed rubber or gross rubber
粘度,焦味和硫化指数等。计算机控制,数据显示,自动校准,
这是橡胶行业的精确唇部测试工具。在高级的强烈支持下
PC machine WindowsXP, window 7 or other windows software, coupled with the excellentuser software
而且高级硬件没有准备使整个测量变得非常方便,快速,
accurate nd pleasure.
标准:
GB/T1232,GB/T 1233,ISO667,ISO 289,ASTM D 1646,JIS K 6300等
规格:
项目 |
规格 |
温度控制范围 |
从室温到200°C |
死亡的温度波动 |
≤±0.1°C |
Temperature display resolution |
0.1°C |
温度升高 |
房间的脾气ature ~ 100°C 6min |
Measurement range of torque |
0-200 MV |
Mooney测试准确性 |
±0.2MV |
扭矩分辨率 |
0.1mv |
Frequency of rotor |
2±0.02R/min |
温度PID控制 |
+/- 0.1°C |
上下 |
Separate plate temperature control |
电源 |
220 V ,1 Phase, 50 Hz 680W |
方面 |
550×570×1130毫米 |
重量 |
约300公斤 |
特征:
1.易于使用。
2.温度可以在7.5分钟内提高至185个,并且在开始时的恢复时间,而开始测试时的恢复时间将较小2分钟。温度波动将在0.1之内。
3.所有仪器都采用了PID控制温度的方式。市场上所有相同类型的仪器中的最小尺寸和重量;
4.该模具旨在国际标准ISO。
5.工作时噪声较低,≤55dB。
6. It is following ISO 289 ,ASTM D 1646, JIS K 6300 .
7.可以变化的温度单位“ c”,f度。
8.Use window XP program connect to machine & and can setting Mooney or scorch time and show Dynamically Mooney value or scorch time on the graph.
图片:
联系人:维多利亚李
Tel:+8613929216856
