AC220 V Computer Portable Tensile Testing Machine Windows Operation

Certification
China Dongguan Liyi Environmental Technology Co., Ltd. certification
China Dongguan Liyi Environmental Technology Co., Ltd. certification
Customer Reviews
我们已经received machines yesterday!It was great to work with you! In attachment the thank-you letter for you and youк boss, that was signed by my CEO.

—— Барабан Григорий

We have had a good look at the glossmeter & we like what we see. The results are respectably close to specification calibration. We love it.

—— Dave Brewer

We have received the machine, thank you for being patient with me during this time, I haven't use it yet, but I am sure that it will be okay.

—— Jose Zikasky

I love your customer service, quickly response and being thoughtful all the time. The machine delivered on time. Thank you.

—— Elizebath Roberts

I'm Online Chat Now

AC220 V Computer Portable Tensile Testing Machine Windows Operation

AC220 V Computer Portable Tensile Testing Machine Windows Operation
AC220 V Computer Portable Tensile Testing Machine Windows Operation AC220 V Computer Portable Tensile Testing Machine Windows Operation AC220 V Computer Portable Tensile Testing Machine Windows Operation AC220 V Computer Portable Tensile Testing Machine Windows Operation

Large Image :AC220 V Computer Portable Tensile Testing Machine Windows Operation

Product Details:
Place of Origin: Dongguan Province, China.
Brand Name: LIYI
Certification: CE Certificate
Model Number: LY-1065
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000 ~ 3000/set
Packaging Details: Standard export package
Delivery Time: 15 business days after deposit
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram

AC220 V Computer Portable Tensile Testing Machine Windows Operation

Description
Name: Universal Computer Precise Strength Portable Tensile Testing Machine Range Of Speed: 0.1~500 Mm/min
Resolution: 1/250, 000 Whole Stroke: 850 Mm (can Be Customized)
Accuracy: ± 0.5 % Force Relative Error: ± 0.5 %
Effective Testing Space: 120 Mm Operation Method: Windows Operation
Weight: 70 Kg Power: 1 PH, AC 220 V, 50/60 Hz
High Light:

tensile testing equipment

,

tensile strength testing machine

AC220 V Computer Portable Tensile Testing Machine Windows Operation

Universal Tensile Spring Testing Machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.

Design standard:ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7

Characteristics:

1. That Using the computer as the main control machine plus the special testing software of our

company can conduct all of testing parameter, work state, collecting data&analysis, result display

and printing output.

2. Have steady performance, high accuracy, powerful software function and easy operation.

3. Use the USA high-precision load cell.

Specifications:

Model

1065

Range of speed

0.1 ~ 500毫米/分钟

Motor

Panasonic sevor motor

Resolution

1/250,000

Capacity choice

1,2,5,10,20,50,100,200,500kg optional

Stroke

650mm(excluding clamp)

Accuracy

±0.5%

Force relative error

±0.5%

Displacement relative error

±0.5%

Test speed relative error

±0.5%

Effective testing space

120mmMAX

Accessories

computer, printer, system operation manual

Optional accessories

stretcher, air clamp

Operation method

Windows operation

Weight

70kg

Dimention

(W×D×H)58×58×125cm

Safety Device:

Stroke protection

Upper and lower protection, prevent over preset

Force protection

system setting

Emergency stop device

Handling emergencies

Software functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7. With many units of measurement, the metric system and british system can switch;

8. Have automatic calibration function;

9.用户定义的测试方法函数;

10. Have test data arithmetic analysis function;

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics.

Products shows:

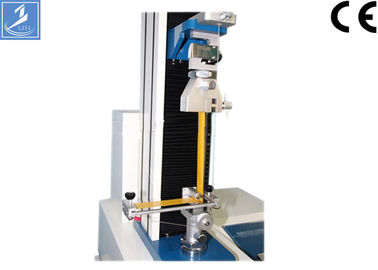

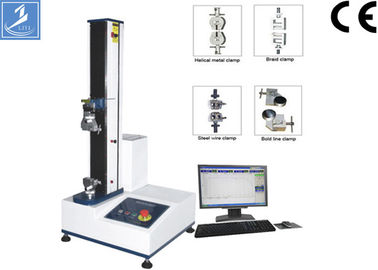

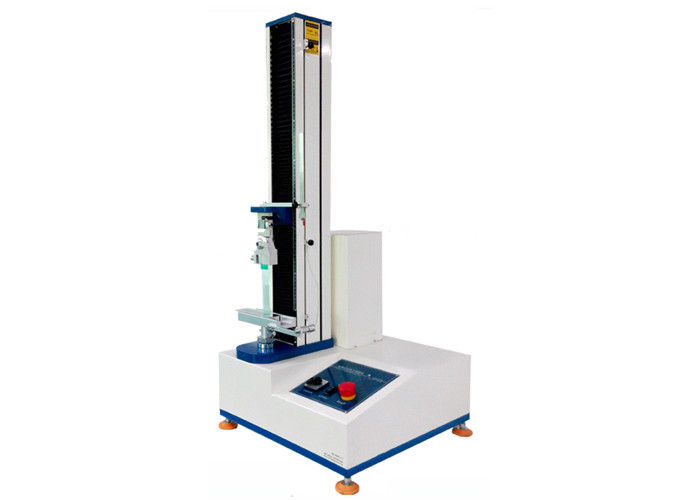

AC220 V Computer Portable Tensile Testing Machine Windows Operation 0AC220 V Computer Portable Tensile Testing Machine Windows Operation 1

AC220 V Computer Portable Tensile Testing Machine Windows Operation 2

Company:AC220 V Computer Portable Tensile Testing Machine Windows Operation 3
