|Test Space::||100*100*100cm( It Can Be Customized)||Customized Order:||Accept|
|Capacity::||1000,2000,5000kg||Usage::||Compression Testing Machine|
|Dimension::||170*100*185cm||Effectual Range Of Testing Force:||1~100%F.S|
pressure testing equipment,
leakage testing equipment

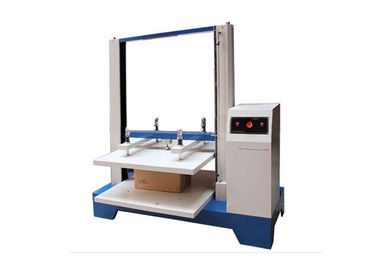

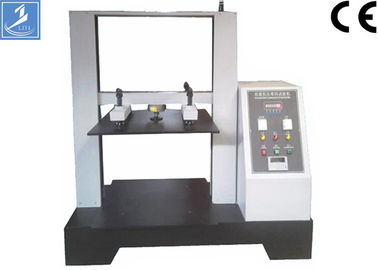

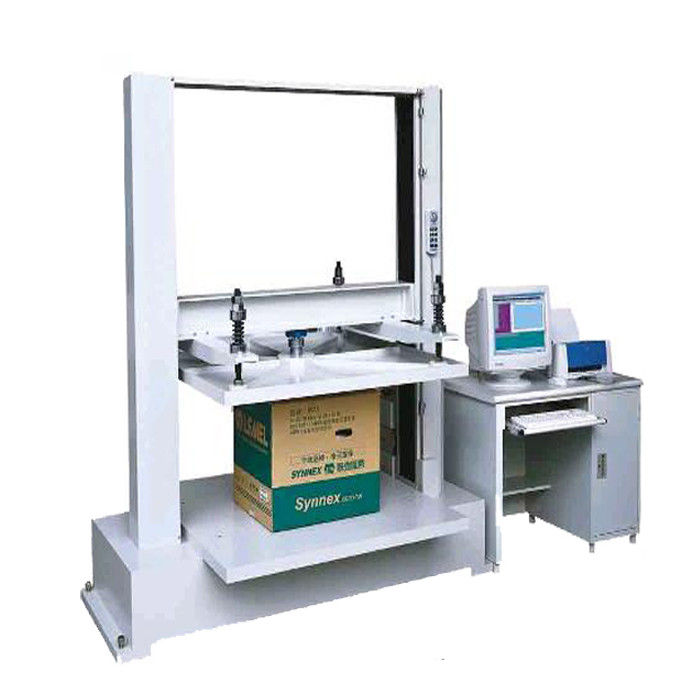

Electronics Compression Pressure Testing Machine For Corrugated Carton Box
box stacking tester is used for measuring the pressure strength of cartons,containers,etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.
1.box stacking tester Adopting windows platform, all the parameter settings can be processed in the dialog box, and it operates easily.
2.box stacking tester Using a single-screen operation, do not need to switch the screen.
3.With three languges in simplified Chinese, traditional Chinese and English, the software interface can be switched easily.
4.Choosing translational, overlapping mode at the same time to make sure a number of curve date comparison.
5.With a variety of measurement units, measure in imperial&metric are switchable.
6.With automatic magnification function, in order to achieve the most appropriate size of the graphics.
7.With an advanced design of machine structure which have strong rigidness and small volume but light weight.
8.box stacking tester can do test of compression strength, stack strength and peak value.
|Test space||100*100*100cm( it can be customized)|
|Drive System||servo system,precision ball screw, DC variable speed drive system|
TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4
Test samples in test enginery two parallel between linking piece, and then even to put pressure on record load and linking piece displacement, until the test sample fracture, or load or linking piece a says to the expected value so far.
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7. With many units of measurement, the metric system and british system can switch;
8. Have automatic calibration function;
9. Have user-defined test method function
10. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
